Home >> Audi >> 2012 >> TTS Quattro Coupe (8J3) L4-2.0L Turbo (CDMA) >> Repair and Diagnosis >> Powertrain Management >> Fuel Delivery and Air Induction >> Turbocharger >> Description and Operation

Turbocharger: Description and Operation

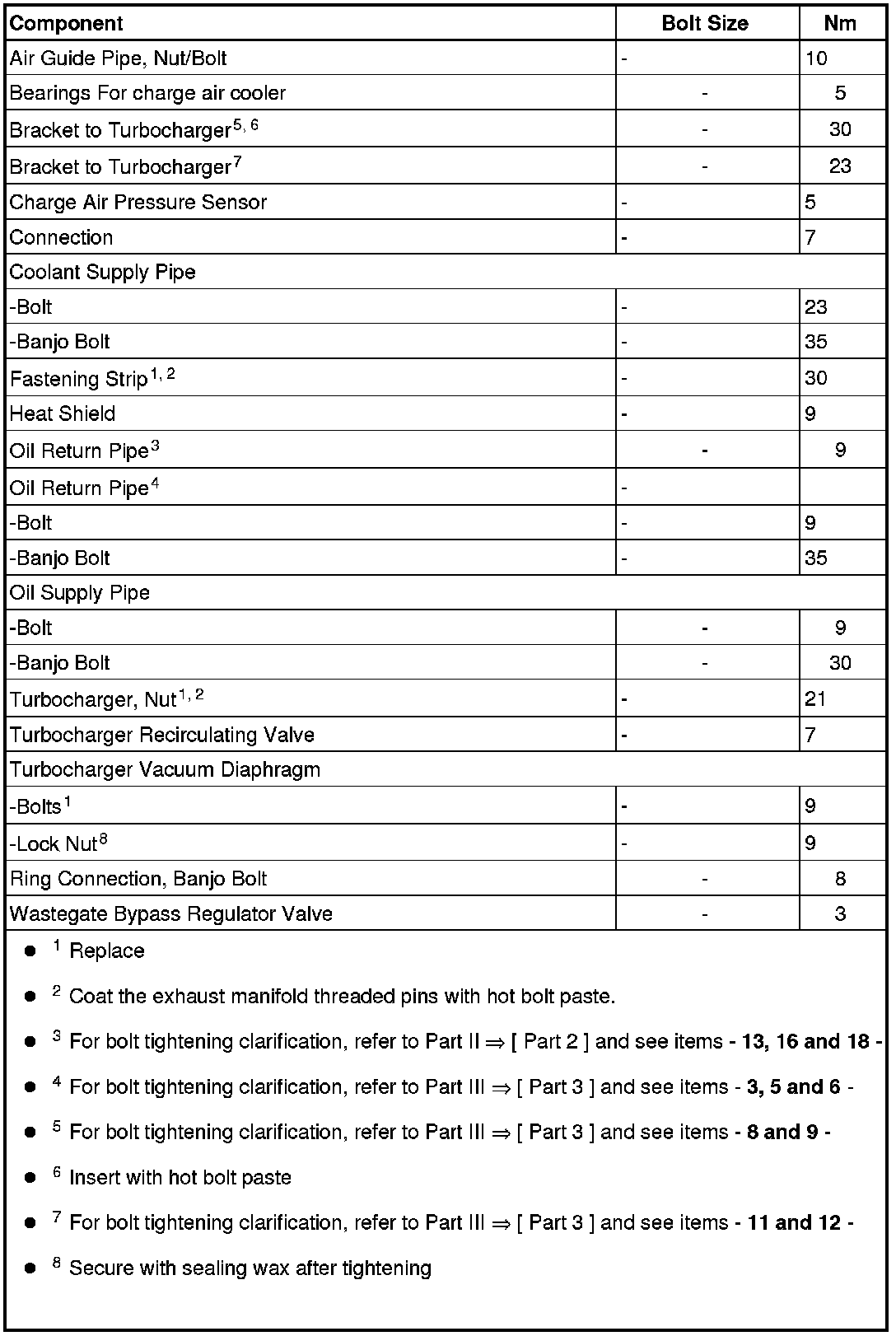

Fastener Tightening Specifications
