Diagnostic Mode 09 - Read Vehicle Information

Diagnostic Mode 09 - Read Vehicle Information

Diagnostic Mode 09 makes it possible to access vehicle-specific information from the ECM and the TCM (where applicable).

• Depending on scan tool and protocol used, Diagnostic Mode 09 and the information provided may be referred to by a different name.

Test requirement

• No DTCs stored in the DTC memory.

Procedure

- Connect the scan tool.

- Switch the ignition on.

- Select Mode 09: Vehicle information.

- Select the desired Test-ID.

- The information requested will be displayed on the scan tool screen.

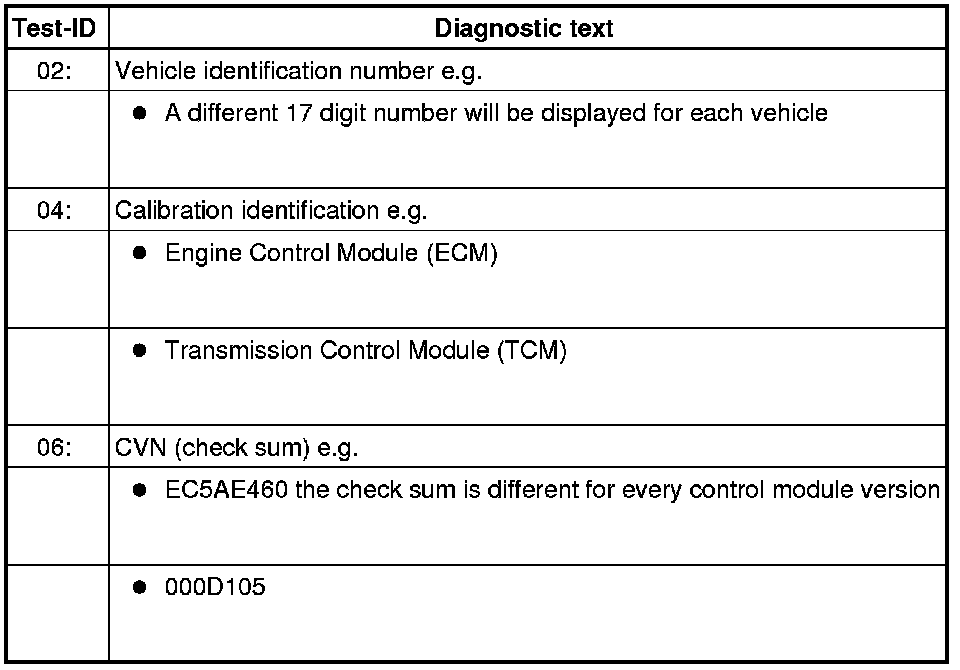

The following table is a numerical list of all Test-IDs that may be selected.






- Switch the ignition off.
