Accelerator Pedal Module, Version 2

Accelerator Pedal Module, Version 2

Special tools, testers and auxiliary items required

• Release Tool (T10238)

Removing

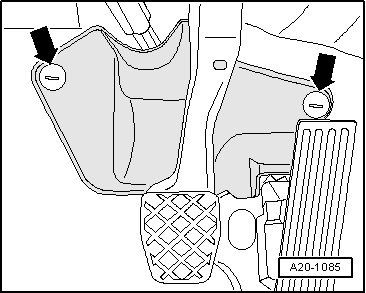

- Remove cover for steering column - arrows -.

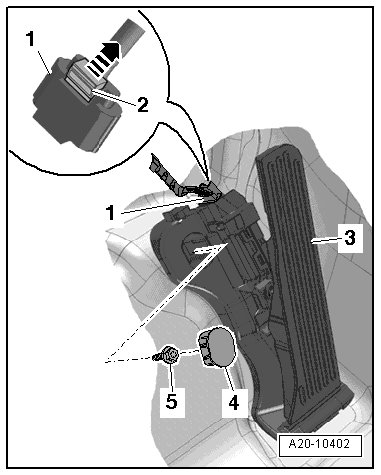

- Disconnect the connector - 1 - on the accelerator pedal module - 3 - by pulling the release - 2 - all the way up - arrow -.






- Pry off the cap - 4 - using a screwdriver.

- Remove the bolt - 5 -.

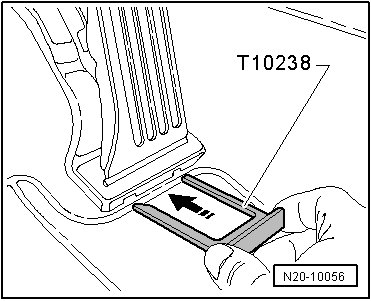

- Push the (T10238) into the intended openings - arrow - as far as the stop, as shown, and remove the accelerator pedal module.






Installing

• Tightening specification, refer to => [ Accelerator Pedal Module Overview, Version 2 ] Accelerator Pedal Module Overview, Version 2.

Install in reverse order, paying attention to the following:

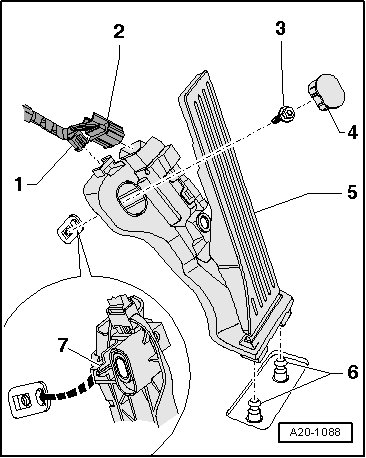

- Connect the connector - 2 - on the accelerator pedal module - 5 -.






• The connector must engage audibly.

- Push the accelerator pedal module onto the securing studs - 6 -.

- Insert centering pin - 7 - into hole on the underbody.

- Secure the accelerator pedal module with the bolt - 3 - and install the cap - 4 -.

• Ignore - 1 -.

Vehicles with Dual Clutch Transmission:

- Perform after the first kick-down adaptation in "Guided Functions" using the vehicle diagnostic tester.
