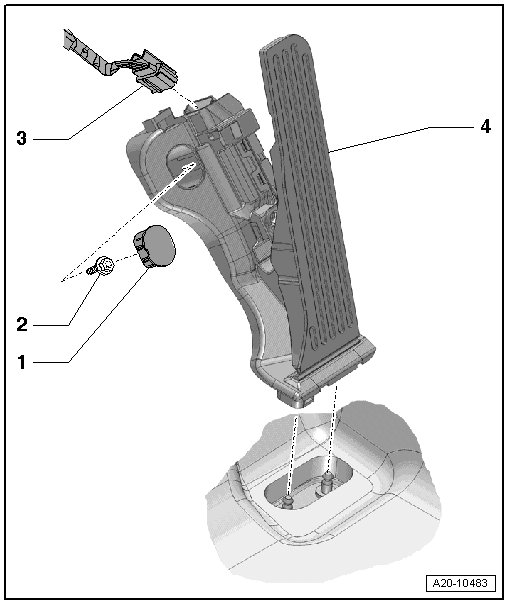

Accelerator Pedal Module Overview, Version 2

Accelerator Pedal Module Overview, Version 2






1 Cap

2 Bolt

• 9 Nm

3 Electrical Harness Connector

4 Accelerator Pedal Module

• With accelerator pedal position sensor (G79) and accelerator pedal position sensor 2 (G185)

• Removing and Installing, refer to => [ Accelerator Pedal Module, Version 2 ] Accelerator Pedal Module, Version 2
