Procedure

• If necessary, housing securing mechanisms (secondary locks) must be released or removed using specified tool before releasing the contacts. Refer to => [ Secondary Lock ] Secondary Lock.

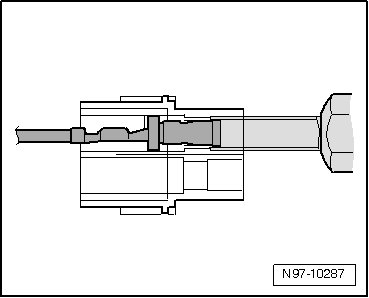

- Guide the release tool which fits the connector housing into release channel on connector housing.






- Grasp the contact at the wire and gently push it into the connector housing - left arrow -.

• By pushing the contact in the direction of the connector housing, contact retaining tabs are lifted off the housing shoulder and can be released using the release tool.

- At the same time, push the release tool in the direction of the connector housing - right arrow - and pull the released contact out of the connector housing.

- Remove the release tool after removing the contact from the housing.
