Primary Connector With Flat Connector Systems

Primary Connector With Flat Connector Systems

Procedure

• If necessary, housing securing mechanisms (secondary locks) must be released or removed using specified tool before releasing the contacts. Refer to=> [ Secondary Lock ] Secondary Lock.

Flat Connector System With One Retaining Tab






- Guide the release tool which fits the connector housing into release channel on connector housing.

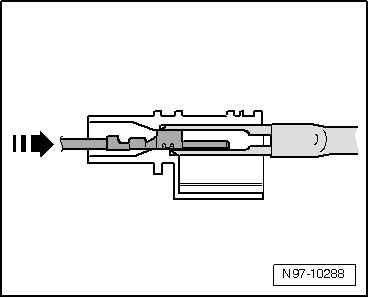

- Grasp contact at wire and push it gently into connector housing - arrow -.

• By pushing the contact in the direction of the connector housing, the contact retaining tab is lifted off the housing shoulder and can be released using the release tool.

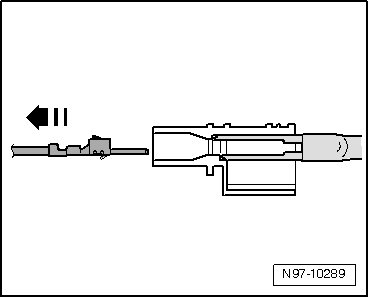

- At the same time, push the release tool in the direction of the connector housing and pull the released contact out of the connector housing - arrow -.






- Remove the release tool after removing the contact from the housing.

Flat Connector System With Two Retaining Tabs

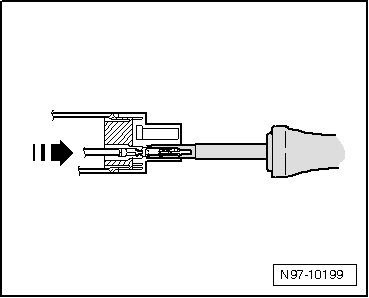

- Guide the release tool which fits the connector housing into release channel on connector housing.

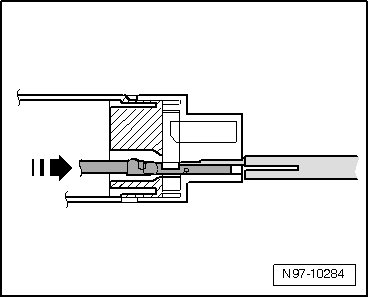

- Grasp contact at wire and push it gently into connector housing until it stops - arrow -.

• By pushing the contact in the direction of the connector housing, contact retaining tabs are lifted off the housing shoulder and can be released using the release tool.

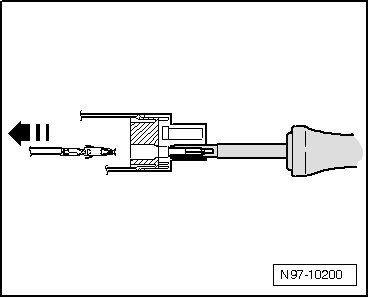

- At the same time, push the release tool in the direction of the connector housing and pull the released contact out of the connector housing - arrow -.






- Remove the release tool after removing the contact from the housing.

Asymmetrical






- Guide the release tool which fits the connector housing into release channel on connector housing.

- Grasp contact at wire and push it gently into connector housing - arrow -.

• By pushing the contact in the direction of the connector housing, contact retaining tabs are lifted off the housing shoulder and can be released using the release tool.

- At the same time, push the release tool in the direction of the connector housing and pull the released contact out of the connector housing - arrow -.






- Remove the release tool after removing the contact from the housing.
