Coolant Pipes Overview

Coolant Pipes Overview

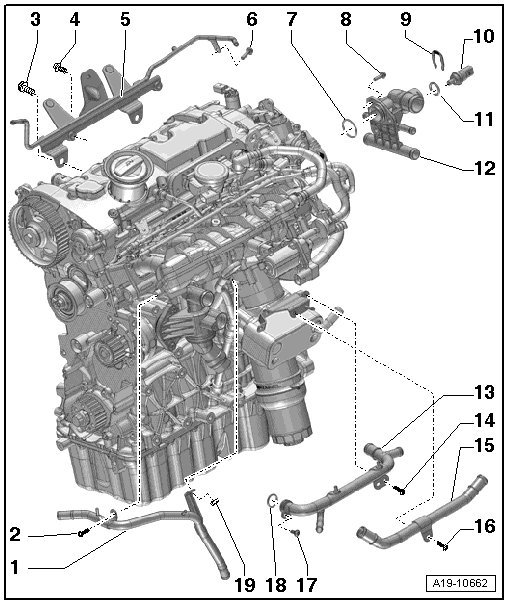

1 Right Front Coolant Pipe

• Removing and installing, refer to => [ Right Front Coolant Pipe ] Right Front Coolant Pipe

2 Bolt

• 6 Nm

3 Bolt

• 40 Nm

4 Bolt

• 23 Nm

5 Coolant Ventilation Line

6 Bolt

• 9 Nm

7 O-ring

• Replace

8 Bolt

• 9 Nm

9 Retaining Clip

10 Engine Coolant Temperature Sensor (G62)

• Removing and installing, refer to => [ Engine Coolant Temperature Sensor ] Engine Coolant Temperature Sensor

11 O-ring

• Replace

12 Coolant Connection

13 Front Coolant Pipe 1

• Removing and installing, refer to => [ Front Coolant Pipes 1 and 2 ] Front Coolant Pipes 1 and 2

14 Bolt

• 9 Nm

15 Front Coolant Pipe 2

• Removing and installing, refer to => [ Front Coolant Pipes 1 and 2 ] Front Coolant Pipes 1 and 2

16 Bolt

• 9 Nm

17 Bolt

• 9 Nm

18 O-ring

• Replace

19 Nut

• 9 Nm
