Fog Lamp

Fog Lamp

Removing






- Switch off ignition and remove ignition key.

- Turn light switch into "0" position.

Audi TT

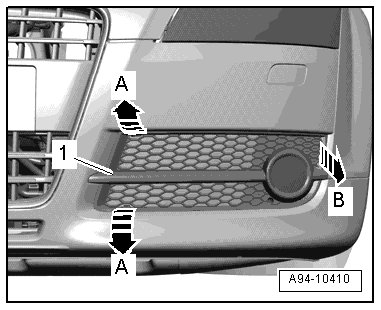

- Release retaining hooks - A arrows - with a screwdriver.

- Remove bumper cover air inlet grille - 1 - - arrow B -.

Audi TTS

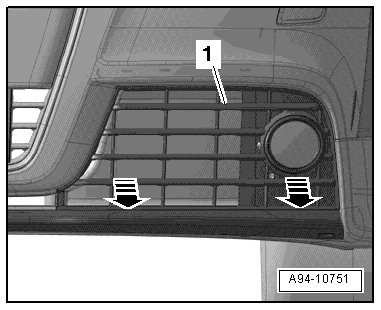

- Remove bumper cover air inlet grille - 1 - - arrows -.

Continuation for all

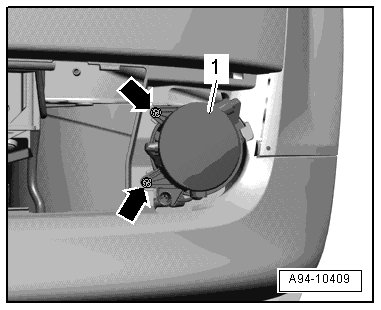

- Remove screws - arrows -.

- Remove fog light housing - 1 - from bumper cover.

- Disconnect the connector.

Installing

• Tightening specification, refer to => [ Fog Lamps Overview ] Fog Lamps Overview.

Install in reverse order of removal. Note the following:

- Adjusting fog lamps, refer to => [ Headlamps Checking and Adjusting Conditions ] Headlamps Checking and Adjusting Conditions.
