Front Entry Lamps (W31)/(W32) and Door Warning Lamps (W30)/(W36)

Front Entry Lamps (W31)/(W32) and Door Warning Lamps (W30)/(W36)

Removing

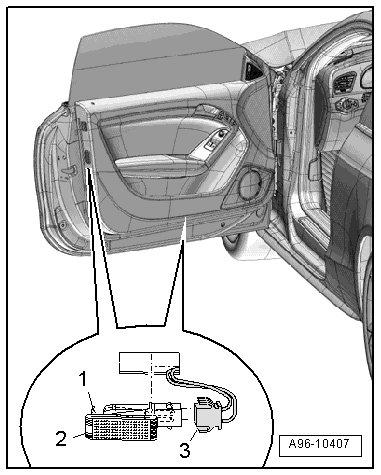

- Press the retaining tab - 1 - in using a flat-head screwdriver and pry the door warning lamp or entry lamp - 2 - out.

- Disconnect the electrical connector - 3 -.

• The LED front entry lamp cannot be replaced separately.

- Release the retaining clips - arrows - if applicable and remove the cover - 1 - over the bulb.






- Remove the bulb - 1 - on the rear side of the door safety lamp or entry lamp from the socket - 2 -.






Installing

Install in reverse order of removal. Note the following:

- If present, install cover on door safety lamp.

- Insert door safety lamp or access lamp into opening and engage on opposite side.
