Clock: Service and Repair

Radio Frequency Controlled Clock Receiver (J489)

Removing






- Remove rear bumper cover. Refer to Removal and Installation.

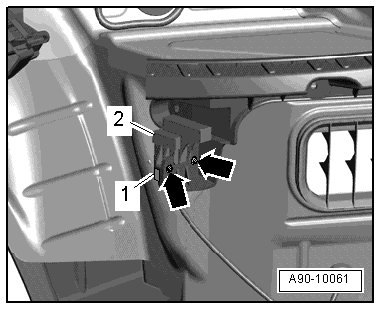

- Remove bolts - arrows - and remove Radio Frequency Controlled Clock Receiver - item 2 -.

- Disconnect electrical connector - 1 - on Radio Frequency Controlled Clock Receiver.

Installing

• Tightening specification. Refer to => [ Instrument Cluster and Clock Receiver Overview ] Instrument Cluster and Clock Receiver Overview.

Install in reverse order of removal. Note the following:

- Install the cover on the rear bumper. Refer to Removal and Installation.
