Right Footwell Vent Temperature Sensor (G262)

Right Footwell Vent Temperature Sensor (G262)

• On vehicles with heating (without A/C), there is no Right Footwell Vent Temperature Sensor installed (depending on version, mounting opening in air guide channel is not present or is sealed with sealing plugs).

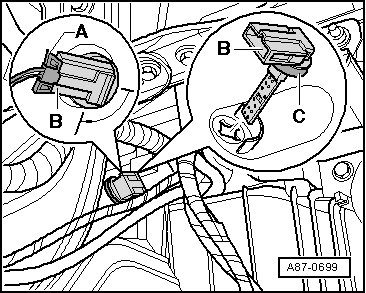

- Remove the glove compartment.

- Disconnect the connector - A -.






- Turn sensor - B - 90° and pull it out of A/C unit.

- Check seal - C - for proper seating when installing.
