Control Assembly: Service and Repair

Comfort System Central Control Module (J393)

Removing

- If the control module is replaced, select "Replace" function for the respective control module in "Guided Functions".

- Remove luggage compartment right side trim.

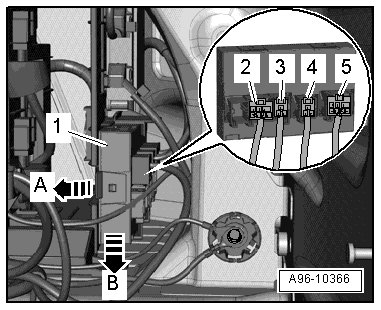

- Press retaining clip to side - arrow A - and remove Comfort System Central Control Module - item 1 - from control module bracket - arrow B -.






- Disconnect electrical connectors - 2 to 5 -.

Installing

Install in reverse order of removal. Note the following:

- Install luggage compartment right side trim.
