Aspirator: Service and Repair

Interior Temperature Sensor Fan (V42)

• There is no Instrument Panel Interior Temperature Sensor (G56) and no Interior Temperature Sensor Fan installed in the Climatronic control module (J255) for heater only.

- Remove Climatronic control module for A/C. Refer to=> [ Climatronic Control Module (J255) ] Description and Operation.

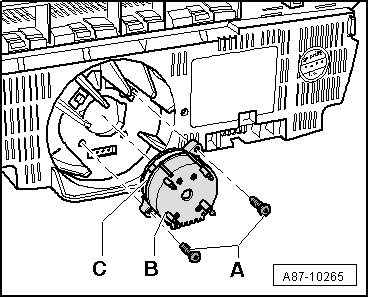

- Remove bolts - A -.






- Pull Interior Temperature Sensor Fan - B - out of Climatronic control module.

• When installing Interior Temperature Sensor Fan, do not press on fan wheel - C - but rather hold blower firmly on housing.
