Center Muffler Heat Shield

Center Muffler Heat Shield

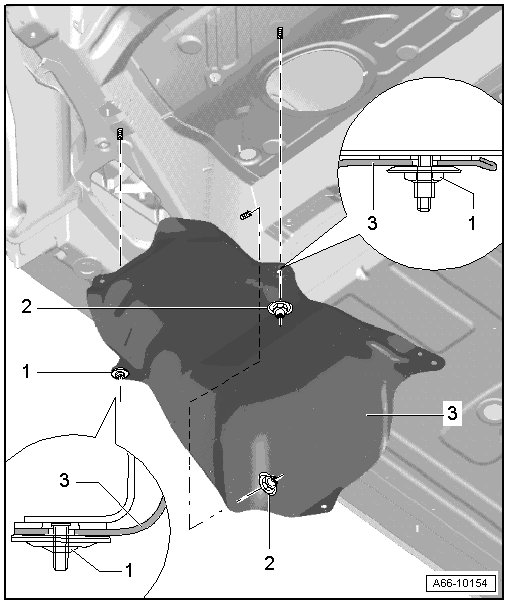

Removing






1 Lock washer

• When removing, remove from threaded pins.

• When installing, lock washer is driven onto threaded pins.

2 Nut

• 2 Nm

3 Heat shield
