Bulkhead Heat Shield

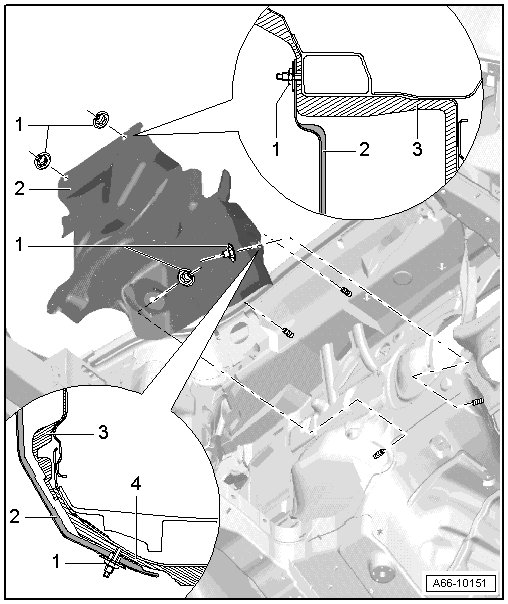

Bulkhead Heat Shield

Removing






1 Nut

• 2 Nm

2 Heat shield

3 Bulkhead insulation

• Routed on joint over center tunnel insulation as shown

4 Center tunnel insulation
