Camshaft, Measuring Axial Play

Camshaft, Measuring Axial Play

Special tools, testers and auxiliary items required

• Dial Gauge Holder (VW 387)

• Dial Gauge 0-10 mm (VAS 6079)

Procedure

- Remove the guide frame. Refer to => [ Camshafts ] Service and Repair.

- Place camshaft to be checked in guide frame.

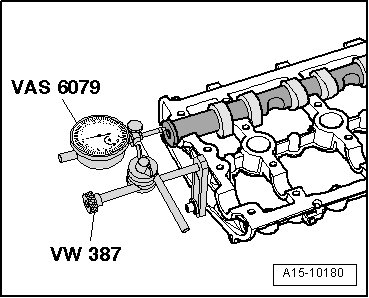

- Secure the (VAS 6079) to cylinder head with the (VW 387).

- Press camshaft against dial gauge by hand.






- Set dial gauge to "0".

- Press camshaft off dial gauge and read the value:

• Axial clearance: 0.05 to 0.17 mm.
