Coolant Fan and Coolant Fan 2

Coolant Fan and Coolant Fan 2

Removing

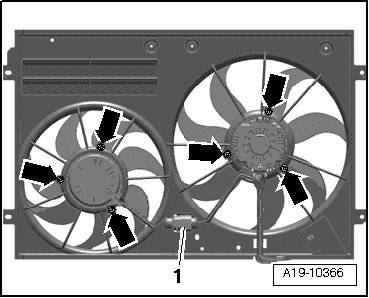

- Remove fan shroud. Refer to => [ Fan Shroud ] Service and Repair.

- Disconnect the connector - 1 -.






- Free up electrical wires.

- Remove nuts - arrows - and remove coolant fan.

Installing

• Tightening specifications, refer to => [ Radiator and Coolant Fan Overview ] Radiator and Coolant Fan Overview.

Installation is done is reverse order, observe the following:

- Install fan shroud. Refer to => [ Fan Shroud ] Service and Repair.
