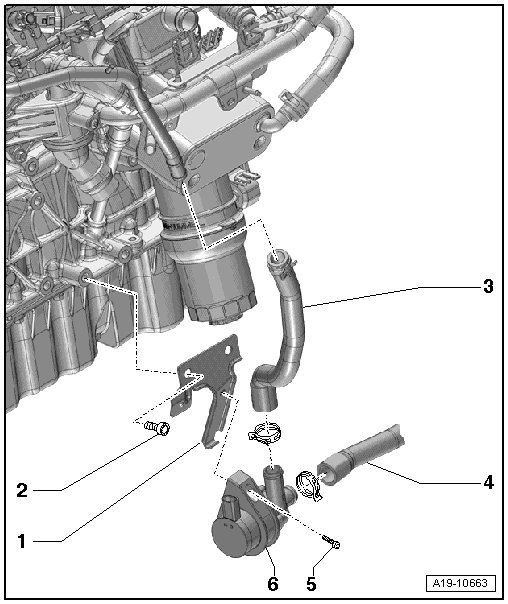

After-Run Coolant Pump Overview

After-Run Coolant Pump Overview






1 Bracket

2 Bolt

• 9 Nm

3 Coolant Hose

4 Coolant Hose

5 Bolt

• 4 Nm

6 After-Run Coolant Pump (V51)

• Removing and installing, refer to => [ After-Run Coolant Pump ] After-Run Coolant Pump
