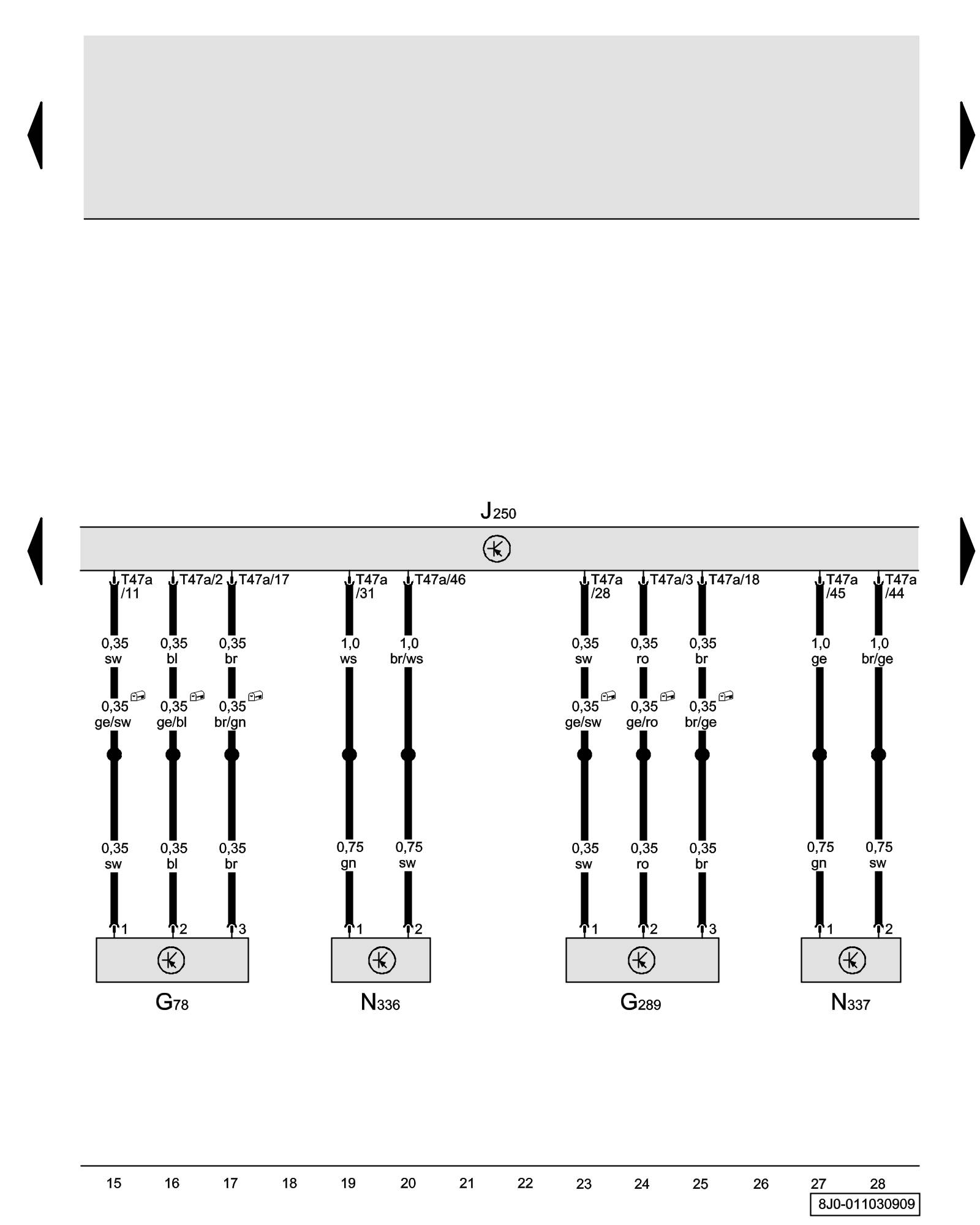

Diagram 11/3 (Tracks 15-28)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Electronic Damping Control Module, Left and Right Front Level Control System Sensor, Left and Right Front Dampening Adjustment Valve





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

G78 - Left Front Level Control System Sensor Locations

G289 - Right Front Level Control Sensor Locations

J250 - Electronic Damping Control Module Component Locations

N336 - Left Front Dampening Adjustment Valve Locations

N337 - Right Front Dampening Adjustment Valve Locations

T47a - 47-Pin Connector, on electronic damping control module

* - from June 2009
