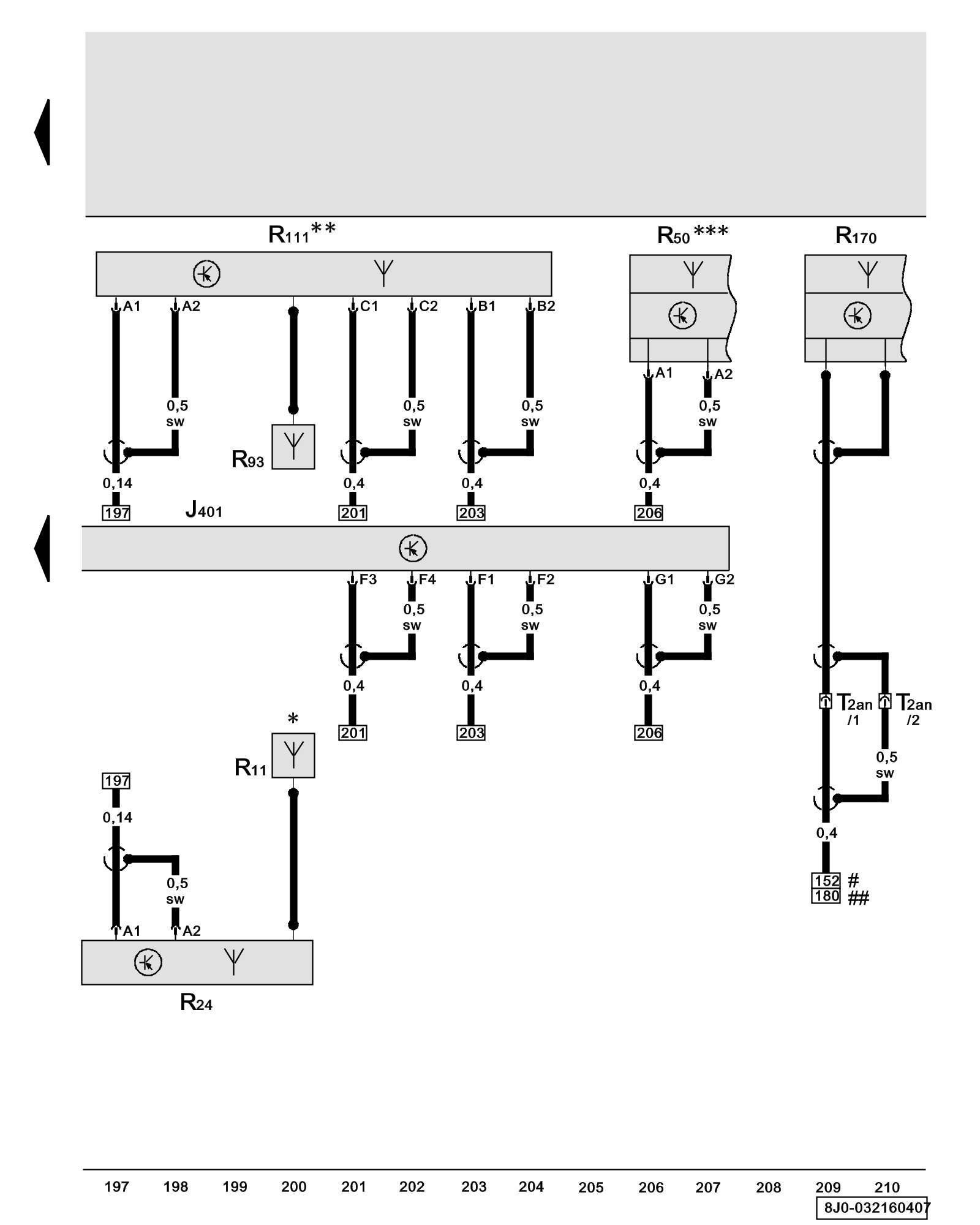

Diagram 32/16 (Tracks 197-210)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Roadster, Navigation System Control Module with CD Drive, Antenna Amplifier, Navigation System Antenna, Satellite Antenna





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J401 - Navigation System Control Module with CD Drive Instrument Panel Wiring Harness Routing

R11 - Antenna Locations

R24 - Antenna Amplifier Rear Lid/ Roof Routing

R50 - Navigation System Antenna

R93 - Radio Antenna 2

R111 - Antenna Amplifier 2 Rear Lid/ Roof Routing

R170 - Satellite Antenna

T2an - Double Connector, green, left rear lid

* - Rear left rod antenna

** - Right rear

*** - Center windshield

# - Models with CD changer

## - Models with iPod baseplate
