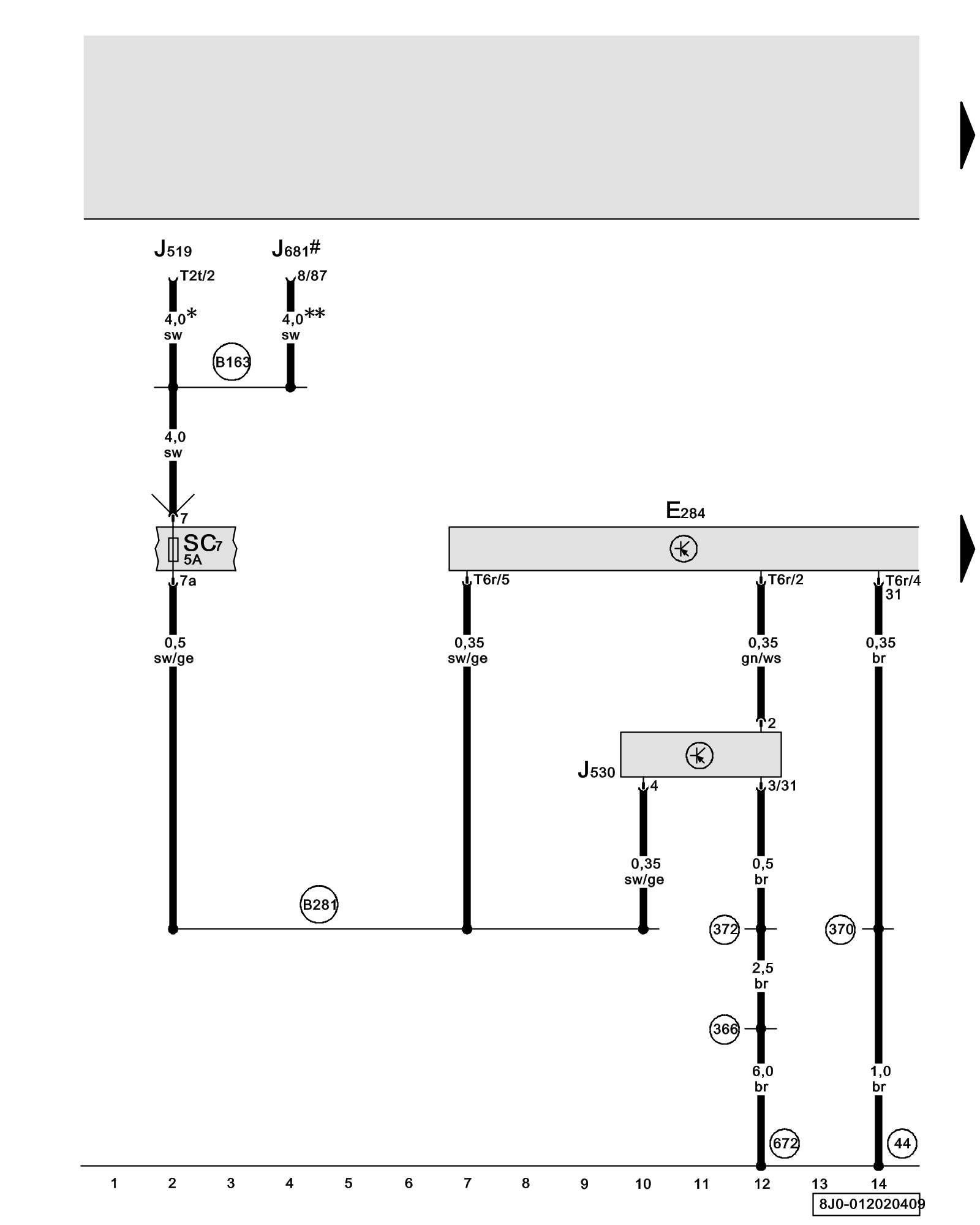

Diagram 12/2 (Tracks 1-14)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Garage Door Opener Control Module, Garage Door Opener Control Head





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

E284 - Garage Door Opener Control Head Locations

J519 - Vehicle Electrical System Control Module Component Locations

J530 - Garage Door Opener Control Module Locations

J681 - Power Supply Relay 2 (terminal 15) Relay Carrier on Vehicle Electrical System Control Module, from June 2009

SC7 - Fuse 7 (on fuse panel C)

T2t - Double Connector, black (Connector L), on vehicle electrical system control module

T6r - 6-Pin Connector, black, on garage door opener control head

(44) - Ground Connection (on left lower A-pillar) Locations

(366) - Ground Connection 1 (in main wiring harness)

(370) - Ground Connection 5 (in main wiring harness)

(372) - Ground Connection 7 (in main wiring harness)

(672) - Ground Connection 2 (on left front long member) Locations

(B163) - Plus Connection 1 (15) (in interior wiring harness)

(B281) - Plus Connection 5 (15a) (in main wiring harness)

* - Through May 2009

** - from June 2009

# - Relay Carrier on Vehicle Electrical System Control Module

Next Diagram 12/3 (Tracks 15-28)
