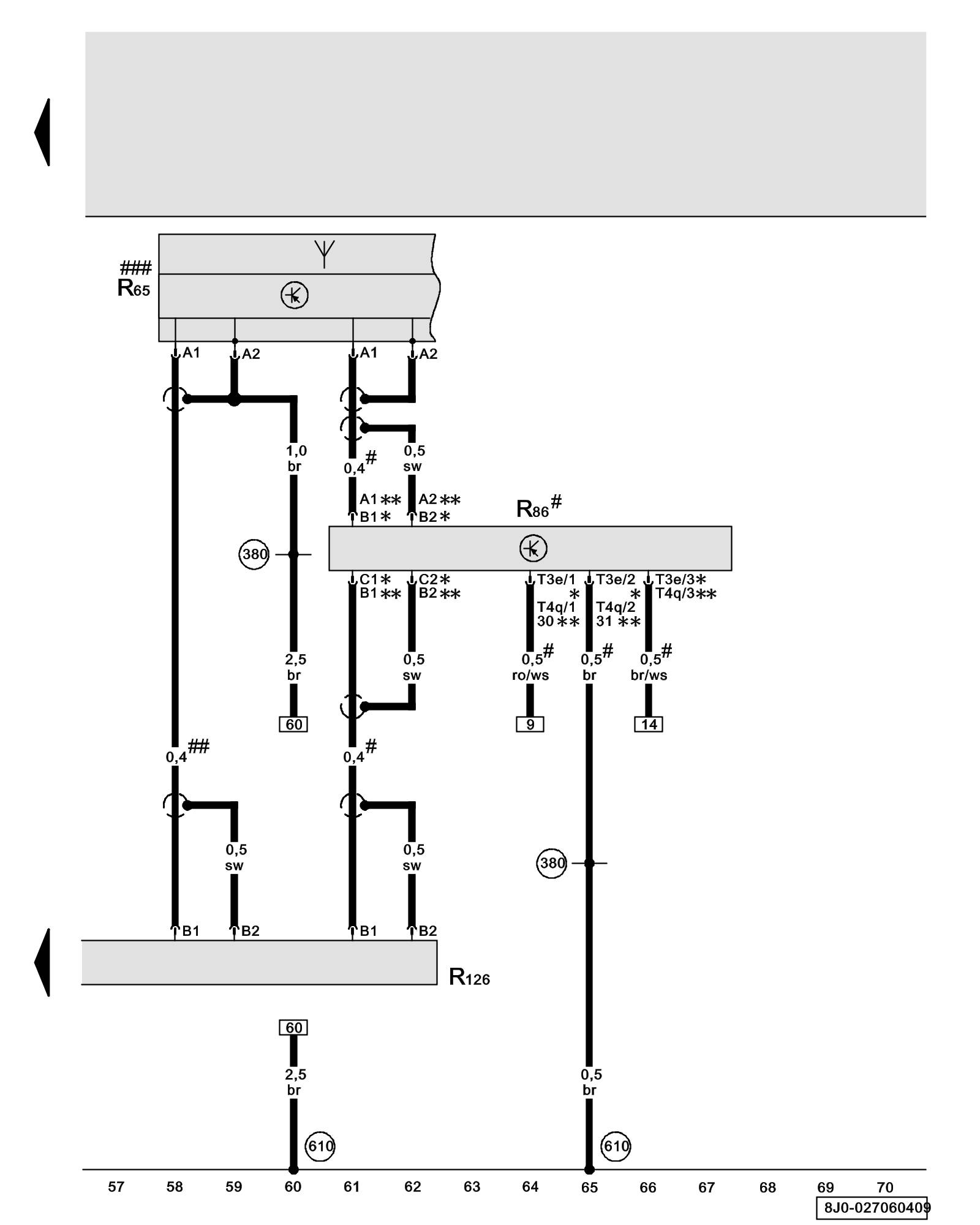

Diagram 27/6 (Tracks 57-70)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Roadster, Amplifier for Telephone, Telephone Baseplate, Telephone Antenna





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

R65 - Telephone Antenna

R86 - Amplifier for Telephone

R126 - Telephone Baseplate Phone System Component Overview

T3e - 3-Pin Connector, black, on amplifier for telephone Locations

T4q - 4-Pin Connector, black, on amplifier for telephone

(380) - Ground Connection 15 (in main wiring harness)

(610) - Ground Connection (Audio) (under center console, front) Locations

* - Through May 2008

** - from June 2008

# - Not for USA

## - Only USA, not applicable for USA from June 2008

### - Telephone antenna, center windshield
