Parking Brake Cable Guide Tube

Parking Brake Cable Guide Tube

Removing

- Remove parking brake cable. Refer to => [ Parking Brake Cable ] Parking Brake Cable.

- Unclip guide tubes from vehicle floor.

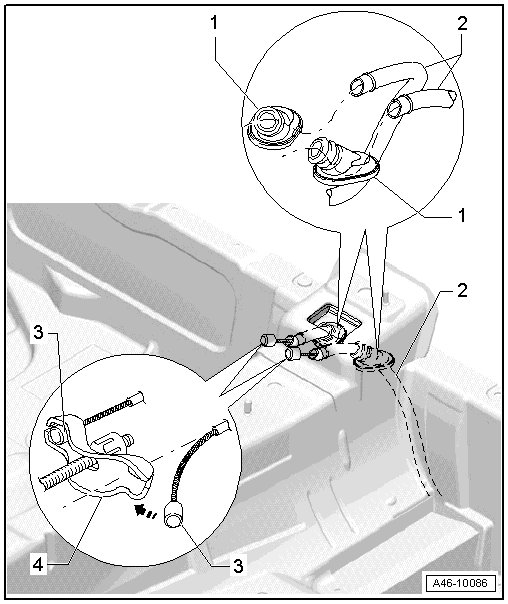

- Remove guide tubes - 2 - from below from vehicle shaft.






- When doing so, ensure rubber grommets - 1 - are not damaged.

Installing

- Slide guide tubes - 2 - from below through vehicle shaft into vehicle interior.

- When doing so, ensure rubber grommets - 1 - are not damaged.

- Clip guide tubes into mounts on vehicle floor.
