Home >> Audi >> 2012 >> TTS Quattro Coupe (8J3) L4-2.0L Turbo (CDMA) >> Repair and Diagnosis >> Brakes and Traction Control >> Hydraulic System >> Specifications

Hydraulic System: Specifications

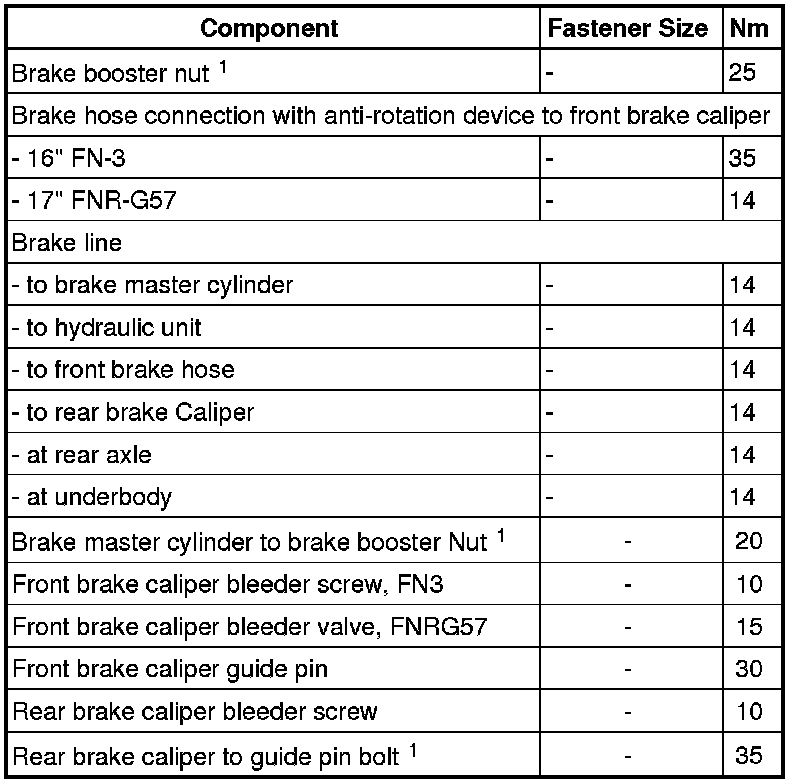

Fastener Tightening Specifications






• 1 Always replace after removal.
