Outer Left or Right Spacer

Outer Left or Right Spacer

• Removal and installation of the left outer filler piece is described for a left 1/2 backrest. Removal and installation of the right outer filler piece is the same.

Removing

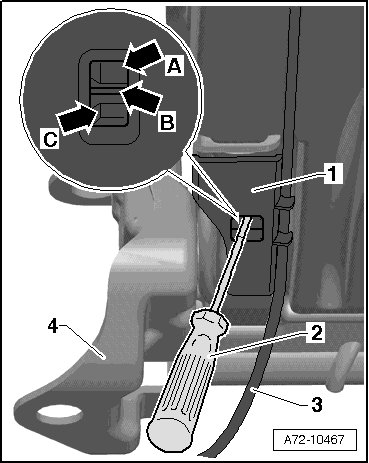

- Unclip filler piece - 1 - at anchor - 4 - using a screwdriver - 2 -.

- Insert screwdriver - 2 - in upper opening - arrow A - and press first retaining tab in direction of center bar - arrow B -.

- Then insert screwdriver - 2 - in lower opening - arrow C - and press second retaining tab in direction of center bar - arrow B -.

- Remove filler piece - 1 - from release cable - 3 -.

Installing

Install in reverse order of removal. Note the following:

- Make sure the filler piece is engaged correctly with anchor.
