Backrest Cover and Upholstery

Backrest Cover and Upholstery

Special tools, testers and auxiliary items required

• Trim removal wedge (3409)






Removing

- Remove the seat bench. Refer to => [ Bench Seat ] Bench Seat.

- Remove the backrest. Refer to => [ Backrest ] Backrest.

- Remove release trim. Refer to => [ Left or Right Trim ] Left or Right Trim.

- If present, remove Top Tether. Refer to => [ Top Tether Child Seat Anchorage ] Top Tether Child Seat Anchorage.

- Remove center bearing cover. Refer to => [ Center Bearing Cover Cap ] Center Bearing Cover Cap.

- Open cable tie - 3 -.






- Disengage release cable - 2 - from bracket - 4 - and lever - 5 -.

1 Fitting

- Open zip fasteners on both sides of cover.

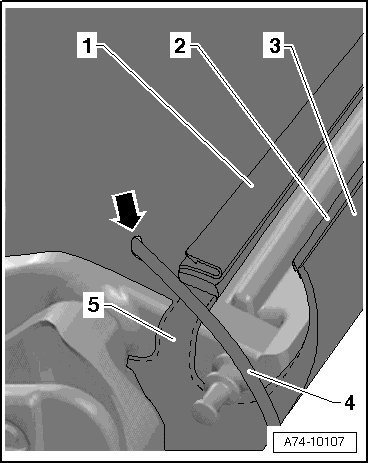

- Using Trim Removal Wedge (3409) , pry out clamping strips - 1 - and - 2 -.






- Disengage tab - 5 -.

- Remove release cable - 4 - from opening - arrow - in cover - 3 -.

- Remove upholstery with cover from adhesive strips on front side of backrest shell.

Installation






Install in reverse order of removal. Note the following:

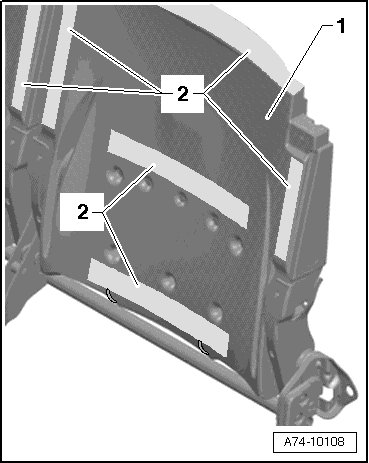

- When installing a new backrest shell - 1 -, protective film should be removed from adhesive strips - 2 - on front side of backrest shell before installing upholstery.
