Seat Height Adjustment Handle

Seat Height Adjustment Handle

Special tools, testers and auxiliary items required

• It is necessary to create an assisting tool

• The seat height adjustment handle can be replaced with the front seat installed.

Removing

- Create an assisting tool.

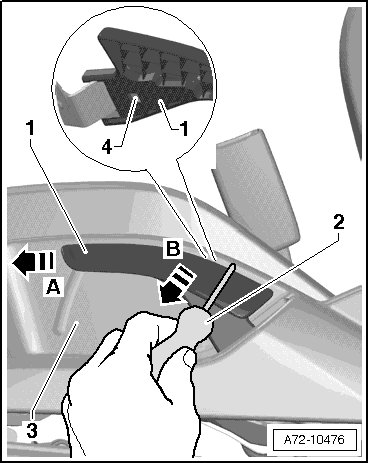

- Pull the seat height adjustment handle - 1 - as far up as possible and hold it in that position.






- Carefully remove the seat height adjustment handle - 1 - from the front seat.

- Guide assisting tool - 2 - into mount - 4 -.

- Pull assisting tool - 2 - in direction of - arrow B - while pressing clip spring outward.

- Pull seat height adjustment handle - 1 - in direction of - arrow A - away from lever.

Installation

Install in reverse order of removal. Note the following:

- Replace clip on seat height adjustment handle while noting clip installation location.

- Make sure the seat height adjustment handle engages correctly with the clips.

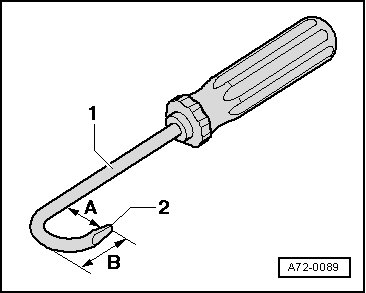

Assisting Tool, Creating






- Bend 3.5 mm wide - 2 - screwdriver - 1 - to dimensions:

• A = 20 mm

• B = maximum of 15 mm.

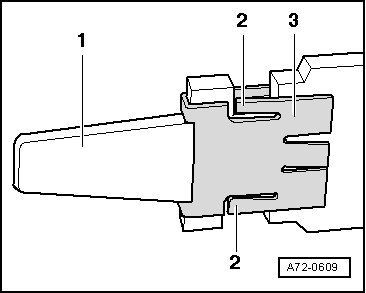

Clip, Installation Location






- Ensure springs - 2 - (quantity: 2) in clip - 3 - are positioned on outside of lever - 1 -.
