Front Seat Lumbar Support Adjustment Switches E176 and E177

Front Seat Lumbar Support Adjustment Switches E176 and E177

Removing

- Remove tunnel side trim panel. Refer to => [ Sill Side Trim ] Sill Side Trim.

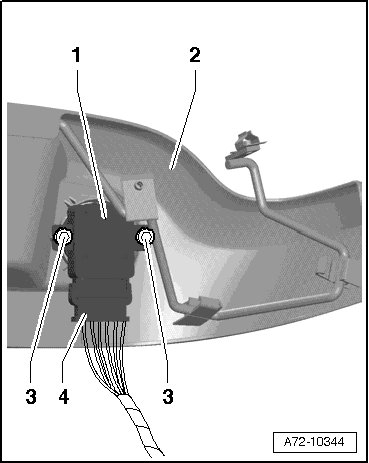

- Disconnect the connector - 4 -.






• On vehicles with manual front seats and passenger occupant detection system (country-specific), the connector - 4 - is connected from above, in contrast to the illustration.

- Remove bolts - 3 - (quantity: 2).

- Remove Driver Seat Lumbar Support Adjustment Switch (E176) or (E177) - 1 - from trim - 2 -.

Installation






Install in reverse order of removal. Note the following:

- Route wires as close to the coupling - 4 - as possible.

For the correct tightening specifications, refer to => [ Front Seat Lumbar Support Adjustment Switches E176 and E177 Assembly Overview ] Front Seat Lumbar Support Adjustment Switches E176 and E177 Assembly Overview
