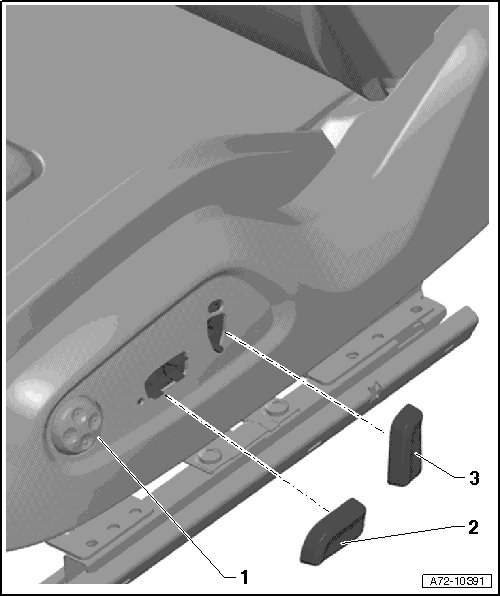

Seat and Backrest Adjustment Actuator Assembly Overview

Seat and Backrest Adjustment Actuator Assembly Overview






1 Actuator

• For Driver Backrest Adjustment Switch (E96) or Passenger Backrest Adjustment Switch (E98)

• The switch (E363) , (E222) , (E364) or the switch or button (E64) , (E334) and (E365) as well as the switch (E96) or (E98) are allocated to the same housing => [ (Item 2) Actuator ].

• Actuator, removing and installing => [ Backrest Adjustment Actuator ] Backrest Adjustment Actuator

• Switch, removing and installing => [ Seat Adjustment Switches, V288/V243/V244/V245/V246/V45/V46 Assembly Overview ] Seat Adjustment Switches, V288/V243/V244/V245/V246/V45/V46 Assembly Overview

2 Actuator

• For driver seat forward/back adjustment switch (E363) or front passenger seat forward/back adjustment switch (E64)

• For driver seat angle adjustment switch (E222) or front passenger seat angle adjustment button (E334)

• For driver seat height adjustment switch (E364) or front passenger seat height adjustment switch (E365)

• The switch (E363) , (E222) , (E364) or the switch or button (E64) , (E334) and (E365) as well as the switch (E96) or (E98) are allocated to the same housing => [ (Item 1) Actuator ].

• Actuator, removing and installing, refer to => [ Seat Adjustment Actuator ] Seat Adjustment Actuator

• Switch, removing and installing, refer to => [ Seat Adjustment Switches, V288/V243/V244/V245/V246/V45/V46 Assembly Overview ] Seat Adjustment Switches, V288/V243/V244/V245/V246/V45/V46 Assembly Overview

3 Driver seat lumbar support adjustment switch (E176) or front passenger seat lumbar support adjustment switch (E177)

• Do not disconnect actuator and switch, they can only be replaced as a complete assembly unit.

• Removing and Installing, refer to => [ Lumbar Support Adjustment Switches E176 and E177 Assembly Overview ] Lumbar Support Adjustment Switches E176 and E177 Assembly Overview
