Seat Pan Cover and Upholstery Assembly Overview

Seat Pan Cover and Upholstery Assembly Overview

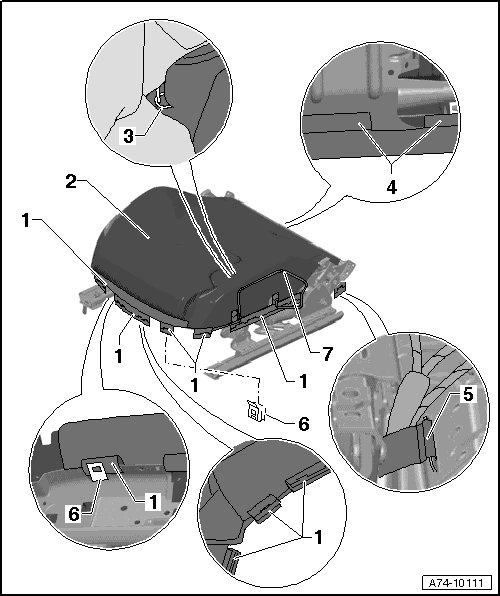

The covers and upholstery are described for a front seat (electric seat). The covers and upholstery for a manual front seat are the same and are not described separately.






1 Retaining strip

2 Cover with upholstery

• Removing and Installing, refer to => [ Seat Pan Cover and Upholstery ] Seat Pan Cover and Upholstery

3 Cushion clamp

• For securing cover to upholstery

• Always replace if removed

• Install in same location as before removal

4 Retaining strip

5 Retaining strip

6 Spring clamp

• Quantity: 2/seat

• Connected to seat pan

7 Retaining bracket

• For sill side trim

• Assembly Overview, refer to => [ Sill Side Trim Retaining Bracket Assembly Overview ] Sill Side Trim Retaining Bracket Assembly Overview

• Removing and Installing, refer to => [ Sill Side Retaining Bracket Trim ] Sill Side Retaining Bracket Trim
