Convertible Top, Convertible Top Compartment Latch Assembly Overview

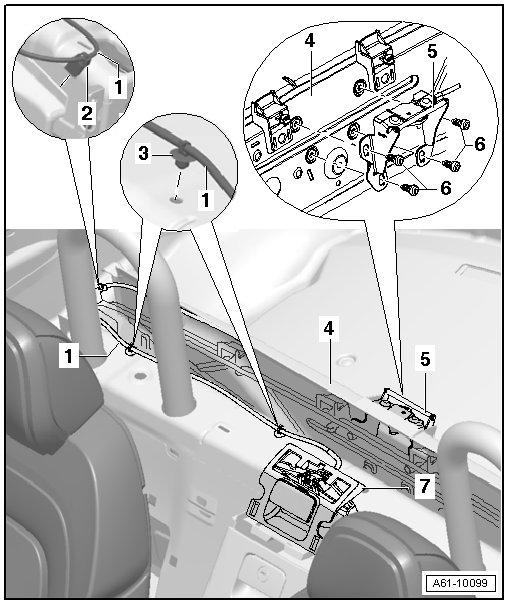

Convertible Top Compartment Latch Assembly Overview

• Only on manual convertible top.






1 Release cable

2 Cable bracket

• Clip cable bracket with wind screen support.

3 Clip

• Clip into upper end plate as shown

4 Front convertible top compartment wall

5 Convertible top latch bracket

• Height adjustment, refer to => [ Front rail height adjustment ] Convertible Top Latch Height Adjustment

6 Screws

• 8 Nm

7 Convertible top latch handle
