Hydraulic Cylinder

Hydraulic Cylinder

Removing

- Convertible top completely removed.

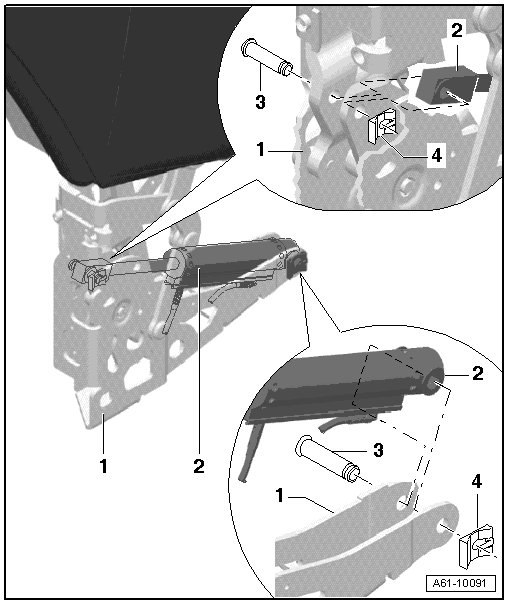

1 Convertible top main bearing

2 Hydraulic cylinder

• Remove securing spring - 4 - from pins - 3 - on piston rod and cylinder.

• Remove pins sideways from main bearing and remove cylinder.

• Remove supply and return line from cylinder.

• After installing, check oil level at hydraulic pump, add hydraulic oil if necessary.

3 Securing pins

4 Securing spring

• Release and slide sideways off securing pins
