Convertible Top, Tension Cable, Tightening

Tension Cable, Tightening

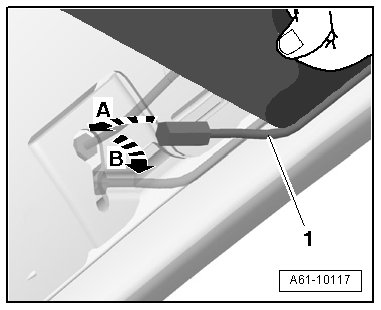

• Make a hook from welding wire to help tighten the tension cable.

- With manual convertible top cover, slide hook - 1 - up into pocket, or with automatic convertible top, in direction of arrow between cover and insulation.






- Engage the tension cable in the hook as shown and pull forward.






- Engage tension cable nipple - 1 - in front rail






- Engage spring - 3 - in eyes - arrow - on main guide - 1 - and rear tension cable - 2 -.
