Hydraulic Cylinder Assembly Overview

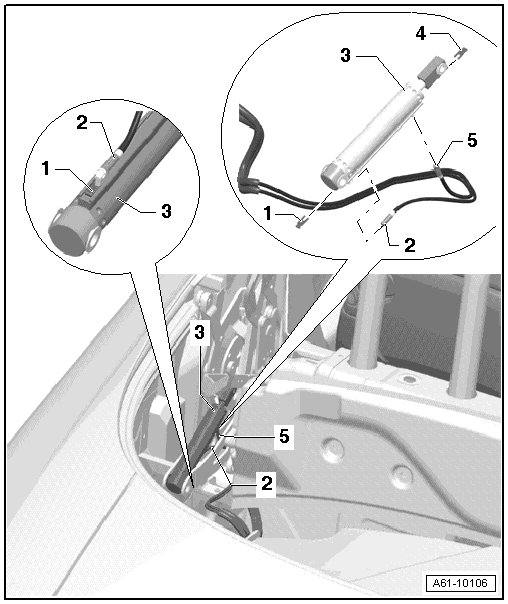

Hydraulic Cylinder Assembly Overview






1 Spring

• Connecting piece securing spring

2 Hydraulic line

• Supply

3 Convertible top cylinder

4 Spring

• Connecting piece securing spring

5 Hydraulic line

• Return
