Convertible Top, Convertible Top Compartment Trim

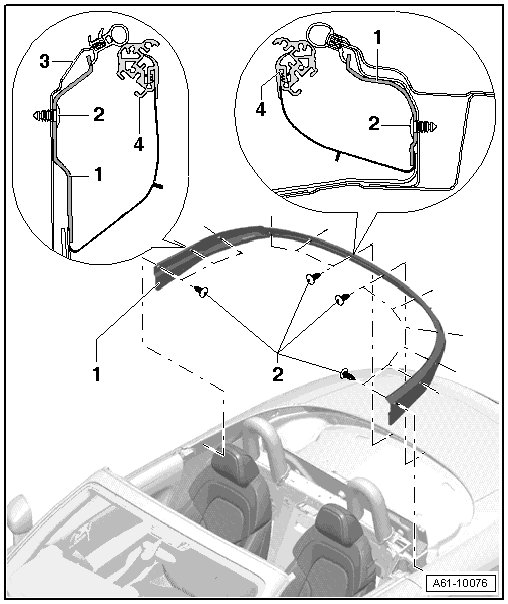

Convertible Top Compartment Trim






1 Rear convertible top compartment trim

• To remove, first disengage upward all around from the bracket and insert between the outer wall and plastic strip.

• If the trim is not inserted, damage can occur when the convertible top is stored.

2 Clip

• Quantity: 12

3 Body flange

4 Bracket
