Convertible Top, Convertible Top Lock

Convertible Top Lock

Removing

• Shims with different inner diameters are located between the convertible top lock and front rail.

• The first shim for the front rail must have the largest inner diameter.

- Front trim removed.

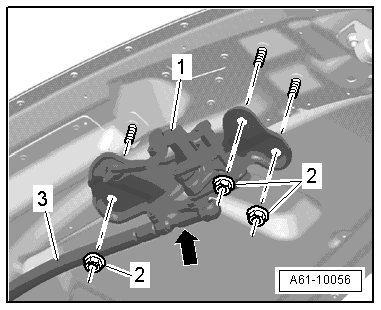

- Remove nuts and remove convertible top lock with linkage.
