Convertible Top Latch Actuator: Service and Repair

Convertible Top Latch Motor

Removing

- Roof crossmember trim removed.

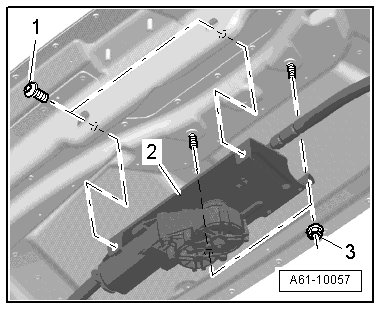

- Remove bolts - 1 - and nuts - 3 - on convertible top latch - 2 -.
