Convertible Top, Roof Guide Stop







Roof Guide Stop

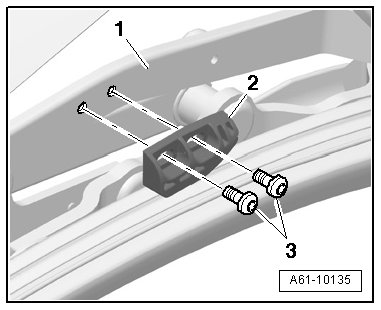

- Secure stop - 2 - with bolts - 3 - to roof guide - 1 - and tighten to 2 Nm.
