Convertible Top Control Module -J256- (Roadster)

Control Modules

Convertible Top Control Module -J256- (Roadster)

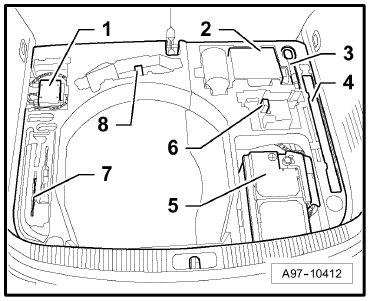

Component Location:
In insert luggage compartment -6-.





1 - Amplifier for Telephone -R86- (not for USA) - Satellite Radio -R146- (only USA)
2 - Breakdown set
3 - Towline anchorage
4 - Warning triangle
5 - Battery -A-
6 - Convertible Top Control Module -J256- (only Roadster)
7 - Tools
8 - Jack

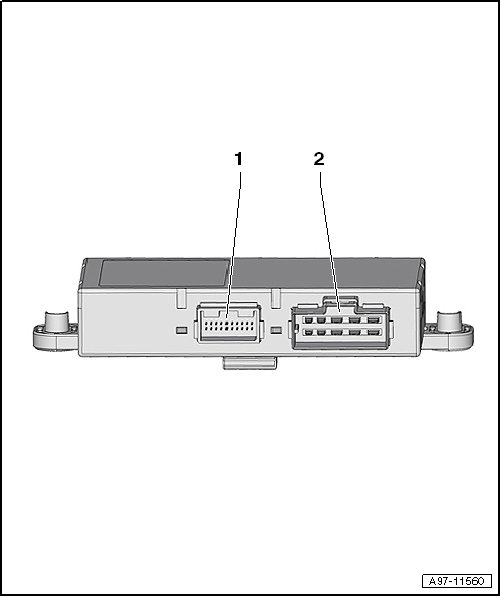

Pin Arrangements





1 20-Pin Connector -T20v- , red
2 10-Pin Connector -T10v- , black
