Glove Compartment Handle with Lock

Glove Compartment Handle with Lock

Removing






- Remove the glove compartment lid trim. Refer to => [ Glove Compartment Lid Trim ] Glove Compartment Lid Trim.

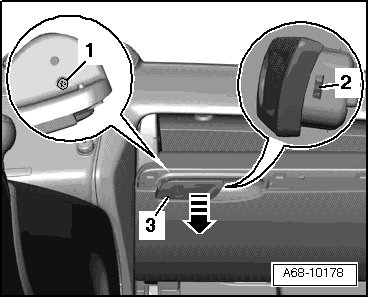

- Remove the bolt - 1 -.

- Using a screwdriver, press tabs - 2 - on side of glove compartment handle down.

- Remove glove compartment handle - 3 - with lock - arrow -.

• It is only possible to remove lock cylinder with key inserted.

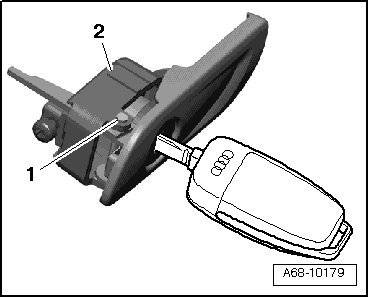

- Drive out pin - 1 - with a drift.

- Remove cover cap - 2 -.

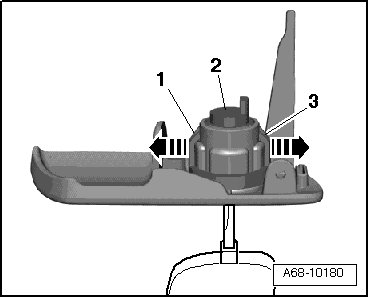

- Using a screwdriver, carefully pry retaining pins - 1 - and - 3 - in direction of - arrow - and at the same time, remove lock cylinder - 2 - from glove compartment handle.






Installation

Install in reverse order of removal. Note the following:

- With key inserted, press lock cylinder in until it engages in all retaining pins.

For the correct tightening specifications; refer to => [ Glove Compartment Assembly Overview ] Glove Compartment Assembly Overview.
