Lower Center Storage Compartment

Lower Center Storage Compartment

Removing

- Remove rear bulkhead cover. Refer to => [ Rear Bulkhead Cover ] Rear Bulkhead Cover.

- Remove the left and right rear panel trim panel sideways. Refer to => [ Side Rear Panel Trim Panel ] Side Rear Panel Trim Panel.

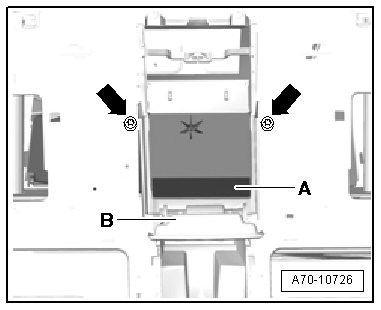

- Remove the bolts - arrows -.






- Remove lower center storage compartment - A - toward rear from luggage compartment.

• Center storage compartment - B - does not need to be removed to removal and install the lower center storage compartment - A -.

Installation






Install in reverse order of removal. Note the following:

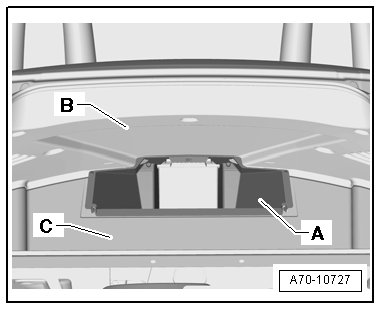

The upper luggage compartment trim panel - B - and the front luggage compartment trim panel - C - must be clamped behind edge of lower center storage compartment - A -.
