Sun Visors

Sun Visors

Removing

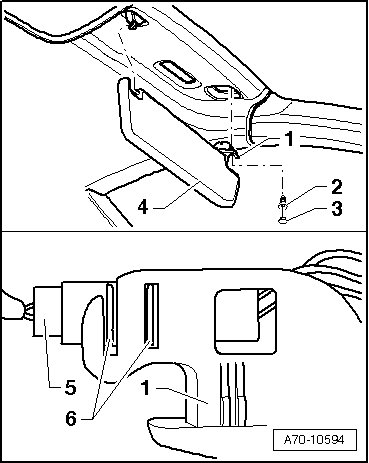

- Disengage sun visor - 4 - in vehicle center from sun visor center bracket and fold this to side.






- Remove the cap - 3 - from the sun visor mount - 1 -.

- Remove bolt - 2 - and remove sun visor - 4 -.

- Disconnect the sun visor connector - 6 - from the sun visor mount - 1 -.

- Disconnect sun visor connector - 6 - from wiring harness connector - 5 -.

Installation

Install in reverse order of removal. Note the following:

For the correct tightening specifications; refer to => [ Sun Visors Assembly Overview ] Sun Visors Assembly Overview.
