Sun Visor Center Mount

Sun Visor Center Mount

Special tools, testers and auxiliary items required

• Pry lever (80-200)






Removing

- Disengage sun visor in vehicle center from sun visor center bracket and fold this to side.

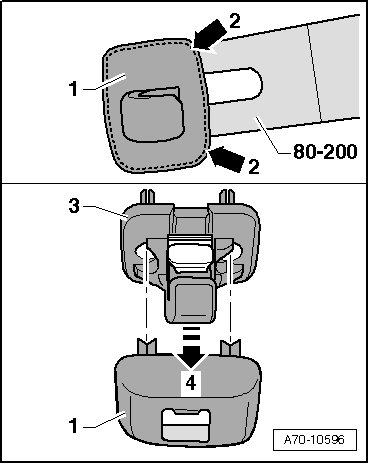

- Unclip sun visor center bearing cover - 1 - with Pry Lever (80-200). Only slide Pry Lever (80-200) about 1 mm under cover cap - 2 arrows -.






• If Pry Lever (80-200) is inserted farther, it will be under the sun visor center bearing. It is not possible then to pry out the cover.

- Remove sun visor center bracket - 3 - - arrow 4 -.

Installation

Install in reverse order of removal. Note the following:

• When inserted sun visor center bracket, make sure spreader tabs are not damaged.
