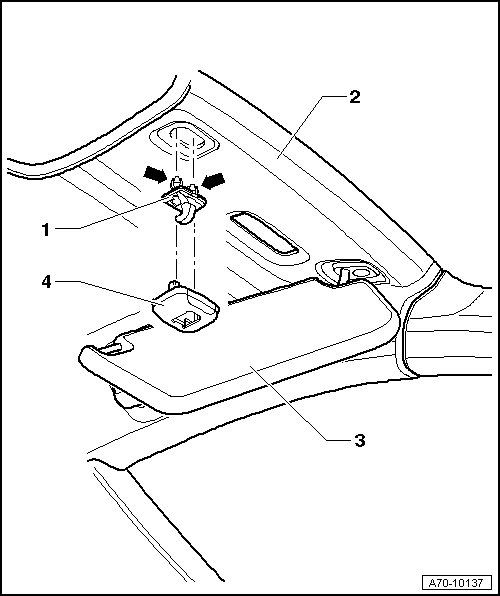

Sun Visor Center Mount Assembly Overview

Sun Visor Center Mount Assembly Overview






1 Sun visor center bearing

• Removing and Installing, refer to => [ Sun Visor Center Mount ] Sun Visor Center Mount

• Replace sun visor center bearing if expanding tabs - arrows - are damaged

2 Headliner

3 Sun visor

4 Cover

• Clipped into sun visor center bracket
