Headliner Assembly Overview

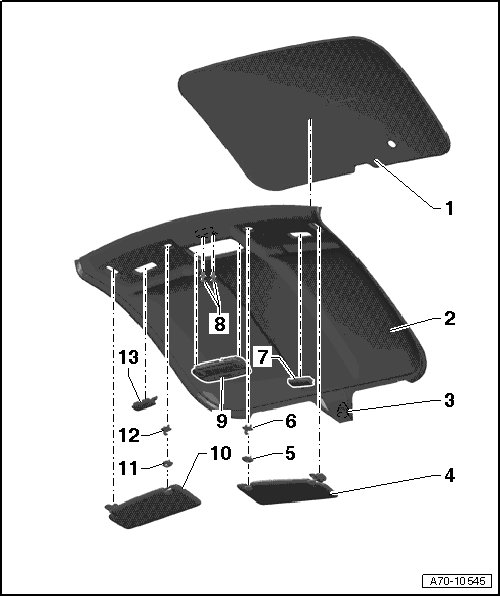

Headliner Assembly Overview






1 Insulation

2 Headliner

• Removing and Installing, refer to => [ Headliner ] Headliner

3 Retaining clip

• Release => [ Remove the clips on the rear mount. ] Headliner

4 Left sun visor

5 Left cover

• For sun visor center bracket

6 Left sun visor center bearing

7 Left vanity mirror light

8 Expanding clip

• Quantity: 2

• Removing, refer to => [ Pry pins out of sleeves using. ] Headliner

9 Interior light/front reading light

10 Right sun visor

11 Right cover

• For sun visor center bracket

12 Right sun visor center bearing

13 Right vanity mirror light
