Upper A-pillar Trim Assembly Overview

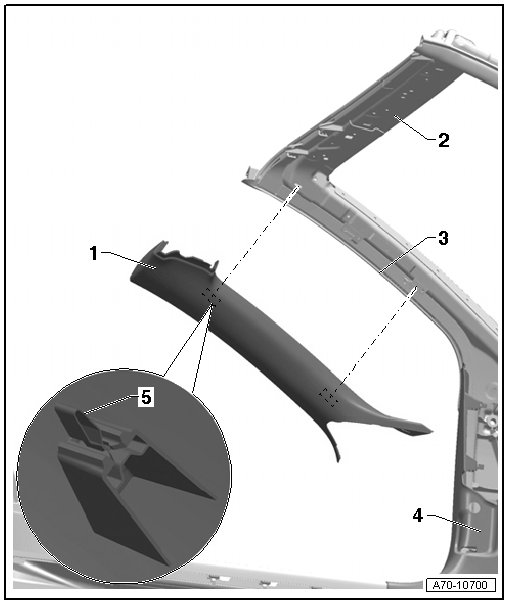

Upper A-Pillar Trim Assembly Overview






1 Upper A-pillar trim

• Removing and Installing, refer to => [ A-Pillar Upper Trim ] A-Pillar Upper Trim

2 Windshield frame

• The windshield frame trim must be removed. Refer to => [ Windshield Frame Trim Assembly Overview ] Windshield Frame Trim Assembly Overview.

3 Door seal

4 A-pillar lower trim

5 Clips

• Replace if damaged or deformed

• There may be 2 or 3 clamps. If there are 3 claps, the third is approximately in the middle of both of the clamps shown.
