Rear Lid Trim Assembly Overview

Rear Lid Trim Assembly Overview

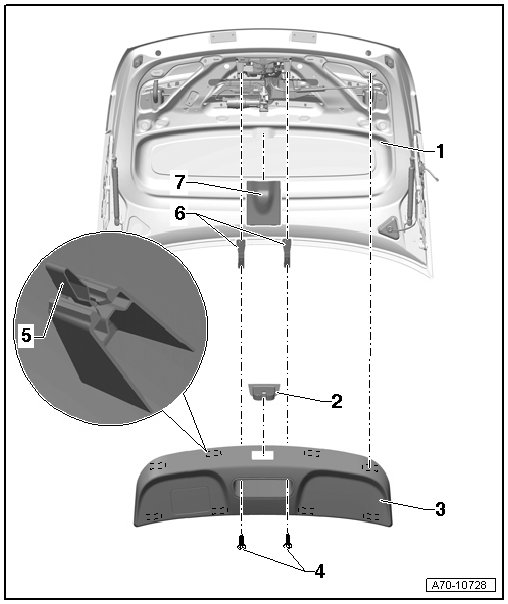

1 Rear lid

2 Rear lid lock trim

• Removing and Installing, refer to => [ Rear Lid Lock Trim ] Rear Lid Lock Trim

3 Rear lid trim

• Removing and Installing, refer to => [ Rear Lid Trim ] Rear Lid Trim

4 Bolt

• 1.8 Nm

• Quantity: 2

5 Clips

• Quantity: 8

• Replace if damaged or deformed

6 Support

• Is engaged in the rear lid and bolted to rear lid trim

7 Trim

• For SDARS antenna

• Not installed on all vehicles, note corresponding equipment

• Clip into rear lid
