C-pillar Trim Assembly Overview

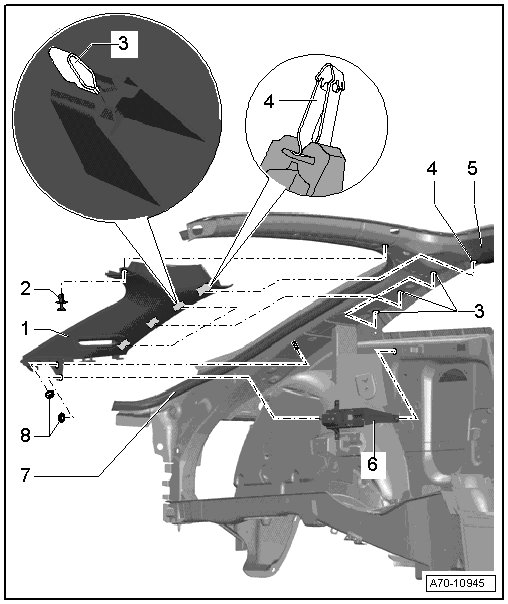

C-Pillar Trim Assembly Overview






1 C-pillar trim

• Removing and Installing, refer to => [ C-Pillar Trim ] C-pillar Trim

2 Expanding clip

3 Spring clamp

• Quantity: 3

• Replace if damaged or deformed

4 Spring clamp

• with hooks

• replace on vehicles without a keyhole

• replace if damaged or deformed on vehicles with a keyhole

5 Upper A-pillar trim

6 Bracket

• For the C-pillar trim, the rear side trim panel and the luggage compartment trim panel

• Removing and Installing, refer to => [ C-Pillar, Rear Side Trim Panel and Luggage Compartment Side Trim Panel Brackets ] C-Pillar, Rear Side Trim Panel and Luggage Compartment Side Trim Panel Brackets

• Bracket bolts tightening specification => [ Rear Side Trim Assembly Overview ] Rear Side Trim Assembly Overview

7 Rear lid seal

8 Nut

• Quantity: 2

• 3.5 Nm
