Side Trim Bracket

Side Trim Bracket

Removing






• Removing and installing is identical for the left and right sides.

- Remove center console side trim. Refer to => [ Center Console Side Trim ] Center Console Side Trim.

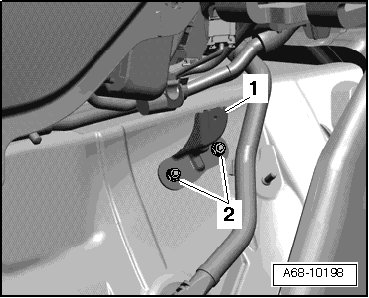

- Fold back carpet around the mount - 1 -.

- Remove nuts - 2 - and remove bracket from center tunnel.

Installation

Install in reverse order of removal.

For the correct tightening specifications; refer to => [ Center Console Assembly Overview ] Description and Operation.
