Armrest

Armrest

Removing






• Removing and installing is identical for the left and right sides.

- Remove the door trim panel. Refer to => [ Door Trim ] Door Trim.

- Remove insulation from door trim.

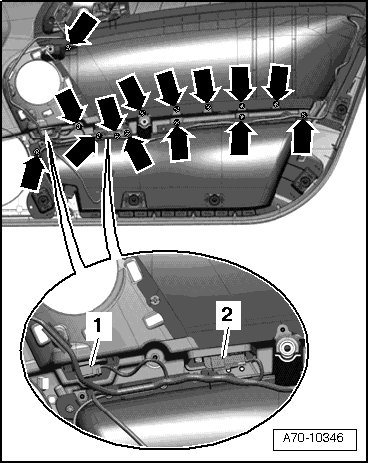

- Disconnect electrical connector at mirror adjustment switch - 1 - and window regulator switch - 2 -.

- Remove the bolts - arrows -.

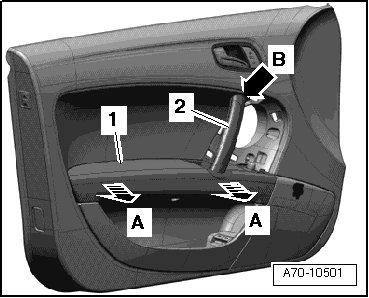

- Disengage top of pull handle - 2 - at door trim - arrow B - and remove it with armrest - 1 - - A arrows -.






Installation

Install in reverse order of removal.

For the correct tightening specifications; refer to => [ Door Trim Assembly Overview ] Description and Operation.
